First, the product type, name:

RSCG01-4

                Ultra high temperature sterilizer

(RP6L40)

Z- self-control, hereinafter referred to as Z-Machine

S- manual type, hereinafter referred to as S-type machine

Second, the shape photo (or outline)

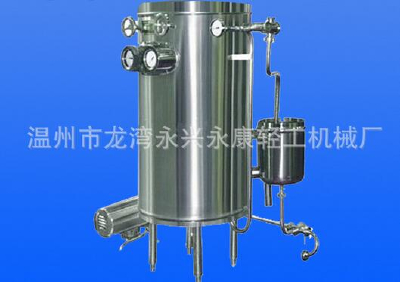

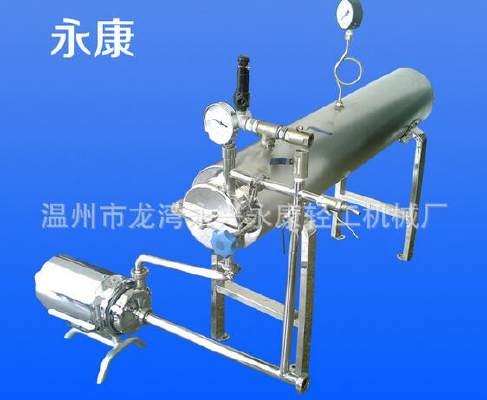

Figure 1 and Figure 2

Third, the purpose and scope

This equipment is mainly used for sterilization or sterilized milk, soy sauce, beverages, alcohol and other fluid materials can also be used for milk, fluid drug material or sterilization. If the homogenizer support, but also for the case of high-viscosity materials, such as sweetened condensed milk and the like.

Fourth, the main specifications and parameters

1, processing capacity: 4m3 / h

2, or sterilization temperature:

Sterilization 115-1350C

Sterilization 135-1450C

3, the use of steam pressure: <0.78Mpa (8kgf / cm2)

4, high-temperature heating time: 4 ~ 6S

5, the material temperature: <450C

6, steam consumption: <0.15Kg / L Material

7, motor power:

When using a centrifugal pump: 3KW

When using two sets of centrifugal pump: 6KW

8, Total weight: Z type: 850kg

S Type: 620kg

Fifth, the main structure and working principle:

1, Z-type machine (self-control) mainly due to the structure shown in Figure 1, the aircraft by the host, a feed pump, electric control boxes and other accessories. Electrical control box with a temperature recorder 8 and the regulator (temperature regulator and amplifier); its annex is electric control valve 9 and the thermal resistance of A, B, C. The former host of the steam inlet pipe is connected; the latter insertion material temperature zone.

Figure 3 depicts a sterilization process materials. Material through the feed pump (1) into the double sets of coils (2) of the outer flow channel, via indirectly heated hot material flowing out of the inner layer to obtain preheating, set at a high temperature when entering the barrel of a single coil heater ( 3), due to the high temperature of the steam indirect heating barrel is heated to the required sterilization temperature, and then incubated in a barrel outside material within the unit coils leaving the bacteria are killed, when entering into the double casing (2), an inner layer when the flow path is cooled by the outer cold material, thus resorted to when the temperature is significantly reduced (typically less than 650C) or the need to improve the process as further lower temperature can be used a valve (11), it turns heat (steam, or cold source (water or ice) to make it into the double sets of coils (2) the lower end of the outer flow channel, whereby the exchange of hot and cold lining materials.

Back-pressure valve (4) is adjustable, so that on the one hand to maintain the material under a certain pressure to raise the boiling point temperature, to prevent vaporization; on the other hand, are used to regulate the flow. Three-way cock (5) is the material used. It is attached to the lower end of coil (14), the outlet of the tube against the sump (6), when required, may be rotating tube aligned with the overflow pipe sump (15). Three-way cock (7) and the upper end of the tank (6)

Phase, the lower end of the pipe is connected to the source material.
