Material contact parts Material: stainless steel and carbon steel two kinds

I. Overview

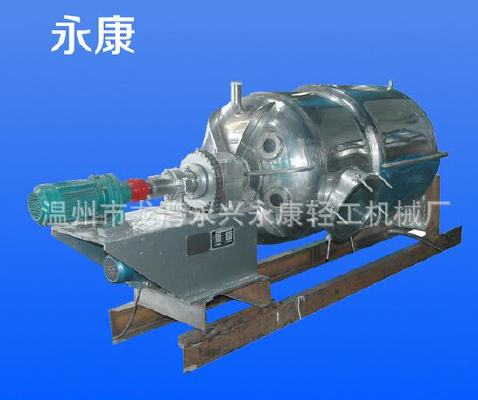

"Vacuum cooling rotary autoclave pot" is designed for cooking sauce brewing industry raw materials (soybean meal oatmeal) machines. Pot for the Marquise, by the worm gear and worm gear. When cooking, can automatically rotate the stacker, the raw material is heated evenly, the effect is good about 20-30 minutes can be cooked. As with hydraulic jet, twenty minutes can be put down to the steamed material needed for fermentation temperature. Saving time, improve labor efficiency, both ends of the pot there is a folding cone head, outlet diameter is four hundred millimeters, can automatically discharge, once all manner of evil. As together with Shredder and delivery device, the steamed material may be sent directly to the fermentation tank, replacing the heavy manual labor. Pot is a sealed container, the desired temperature can be maintained at all times, therefore, the effect of good cooking, steaming than indigenous (indigenous steaming, you need a few hours each time, turning the material, the material is very difficult, cooking effect is not good,) not only solve the stacker, the material difficulties, but also shortens the cooking time, saving gas boiler fuel, while also improving the utilization of raw materials. As the "autoclaved pot" can simultaneously complete the cooking process of preheating, Run water, stirring, cooking, discharging, cooling and other processes, so get rid of the heavy manual labor, reform the original backward production methods, more high-quality soy sauce played an extremely significant role.

I plant production of "vacuum cooling rotary autoclave pot" design, fully furnished, responsible for the quality, implementation of Three Guarantees. Factory of pot was strength calculation, materials, physical and chemical testing, ultrasonic testing welds and hydrostatic testing, etc., and is equipped with safety valves, pressure gauges and other instruments, safe, reliable, durable, sold throughout the country, put into production good results. To meet the requirements of customers, I can plant manufactured more than 5 m 3 autoclave pot for large breweries use, and based on user needs, extra special processing. Such as those who need it, can the communication link, can be ordered.

Second, to the technical specifications

Name ------- "vacuum cooled rotary autoclave pot"

Maximum operating pressure --- 0.2 mpa / cm 2

Hydrostatic test pressure --- 0.3 mpa / cm 2
